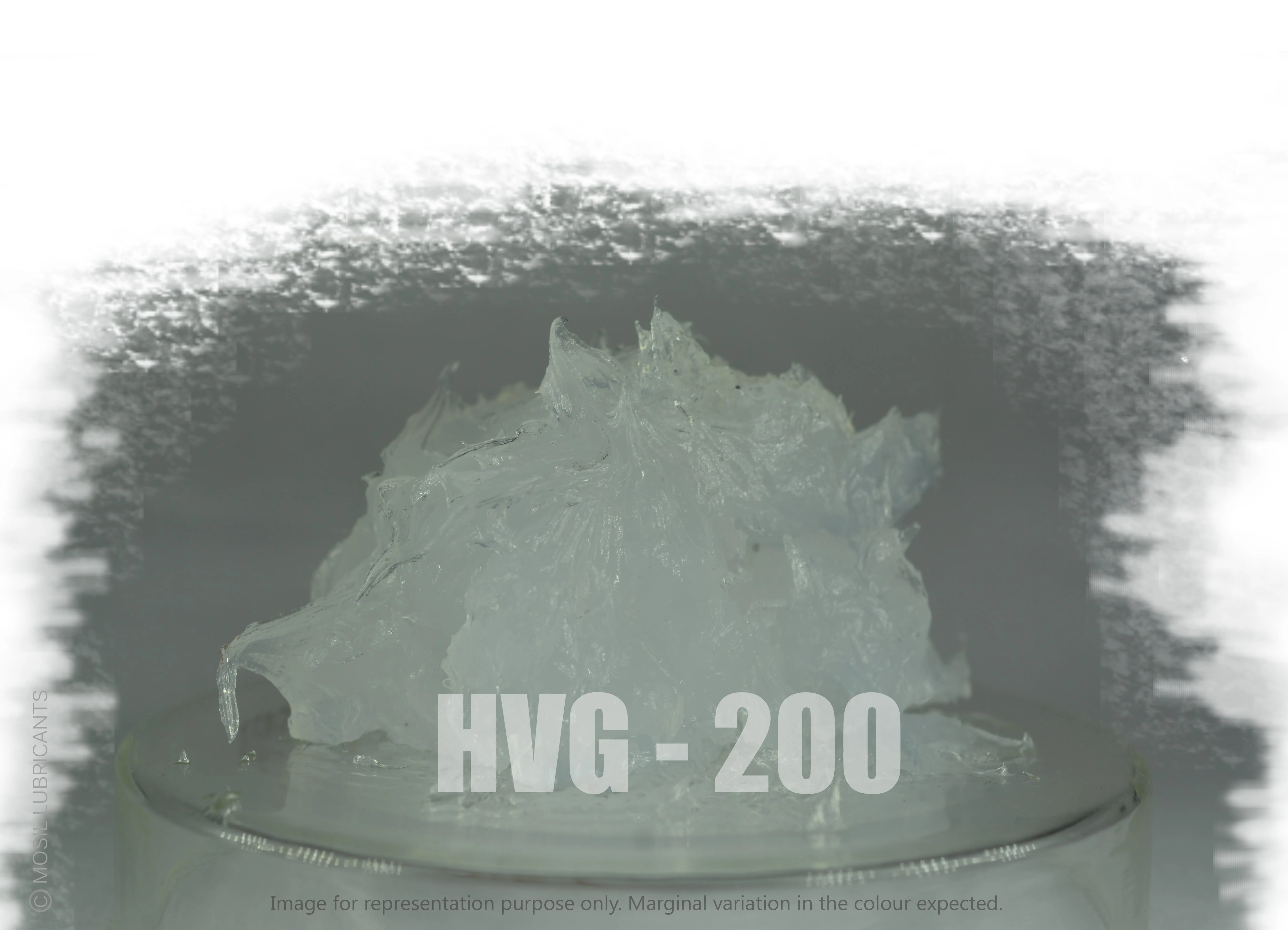

HVG - 200
High Vacuum Grease
- High-vacuum, non-melting silicone-based grease.
- Maintains consistency across a wide temperature range.
- Chemically inert and non-drip formulation.
- Excellent adhesion and water repellency.
Area of application:
- Used in laboratory and industrial high-vacuum systems.
- Lubricates chemical-duty stop-cocks and control valves.
- Acts as a sealant for air lines and pneumatic equipment.
- Effective as a mould release agent for epoxy, PVC and plastics.
Benefits:
- Withstands extreme vacuum conditions up to 10?? torr.
- Offers lifelong lubrication without thermal degradation.
- Prevents leakage and ensures tight sealing in pneumatic systems.
- Serves as an effective mould release agent for thermoplastics.
| Characteristics | Test Method | Typical Values |
|---|---|---|
| Appearance | - | Smooth Tacky Paste |
| Base | - | Silicone |
| Color | - | Light gray, Translucent |
| Drop Point, °C | ASTM D-566 | None |
| Consistency (NLGI) | - | # 3 |
| Worked Penetration | ASTM D-217 | 200 -250 |
| Temperature Range | - | -40° C to 250° C |
